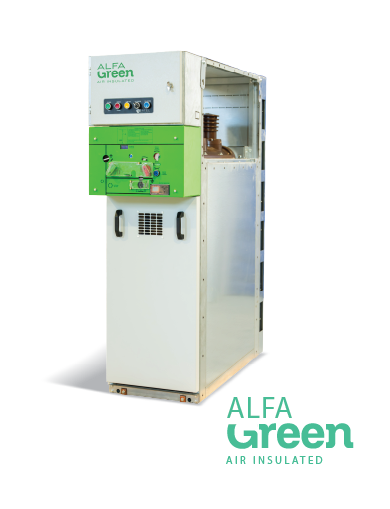

AIR INSULATED CELLS with air insulation at atmospheric pressure
MODULAR SOLUTION
The cells are designed for use in secondary distribution, ensuring the power supply to domestic and industrial consumers.
These are modular, metal-enclosed cells with a simple busbar system and air insulation. They are designed to meet the requirements of most energy distributors and offer an efficient solution for extending existing SF₆ switchboards.
Functions

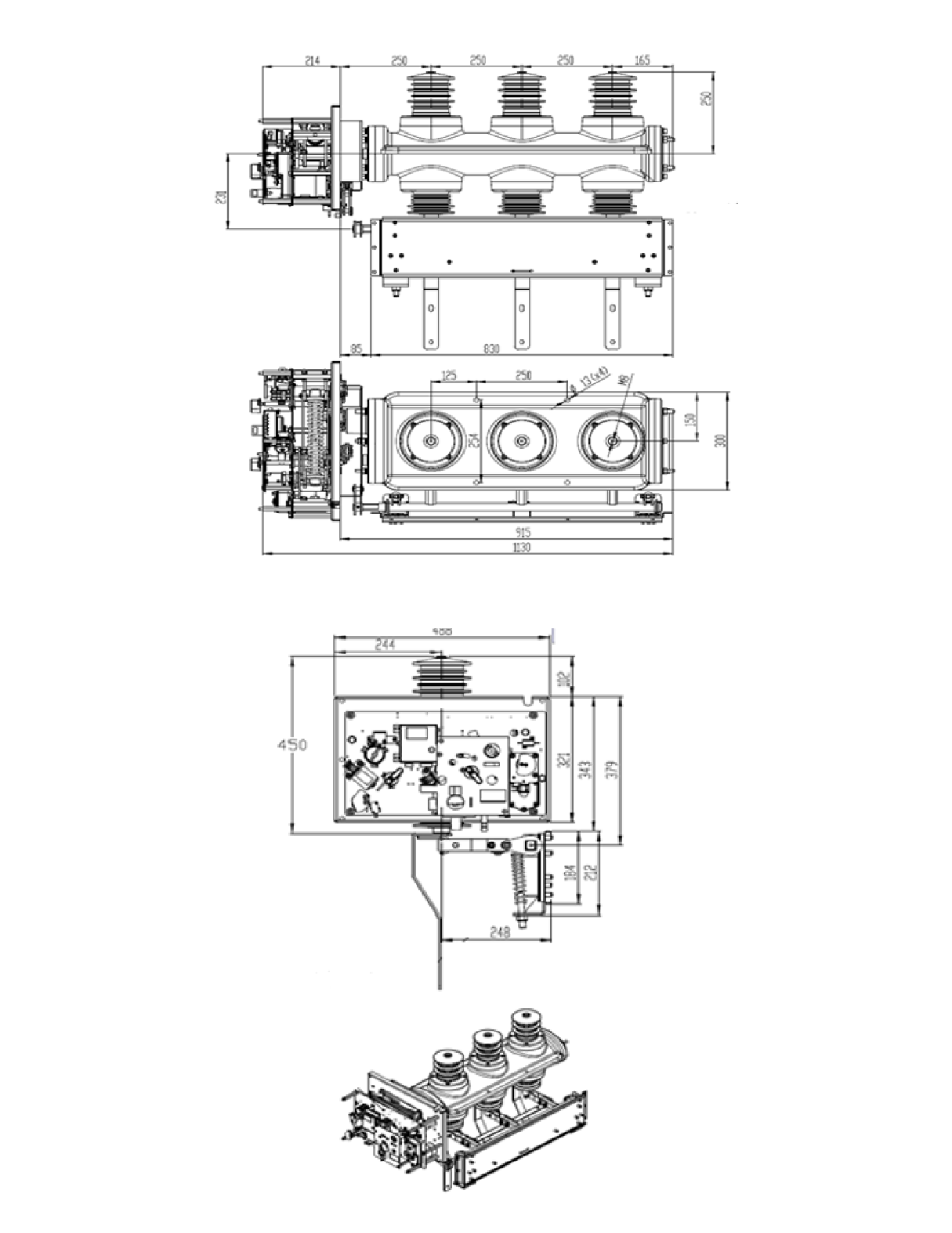

- Load break switch: Made of epoxy resin, which uses dry air for insulation and vacuum interrupters for switching.
- Insulation: Air-based, a safe and environmentally friendly medium.
- Structure: Modular, with fixed apparatus, allowing for rapid integration.
- Compatibility: Can extend or complement existing SF₆ switchboards.
Benefits of ALFA GREEN AIR INSULATED
Complies with (EU) 2024/573
and IEC 62271-200.
Safe and reliable
operation.
Modular solution
For domestic and
industrial consumers.
Advanced insulation
Modular, metal-enclosed cells with a simple busbar system and air insulation, designed to meet the requirements of most energy distributors and offer a solution for extending existing SF₆ switchboards.
Tehnical data
| ⚡︎ | Nominal Voltage | UR=24kV |
| ⚡︎ | Rated Lightning Impuls Withstand Voltage | Up=125/145kV 1,2/50µs |
| ⚡︎ | Nominal Power-Frequency Withstand Voltage | Ud=50kVrms, 1 min |
| ⚡︎ | Nominal Current | Ir=630A |
| ⚡︎ | Short-time Withstand Nominal Current | Ik=21kAef/1sec |
| ⚡︎ | Nominal Peak Withstand Current | IP54.6 kAmax |
| ⚡︎ | Continuity of Operation | LSC2A |
| ⚡︎ | Internal Arc Classification | IAC AFL 16kA/1sec |
| ⚡︎ | Disconnector Mechanical Endurance | M1 Class |
| ⚡︎ | Mechanical Endurance of the Line-Protection Combiner | M0 Class |
| ⚡︎ | Minimum Operating Pressure | 2 bars (abs) |
| ⚡︎ | Filling Pressure | 2.5 bars (abs) |
| ⚡︎ | Load-Break Switch | Manually or motor-operated |
| ⚡︎ | Degree of Protection against Mechanical Impact | IK07 |
| ⚡︎ | Protection Degree | IP3X |
